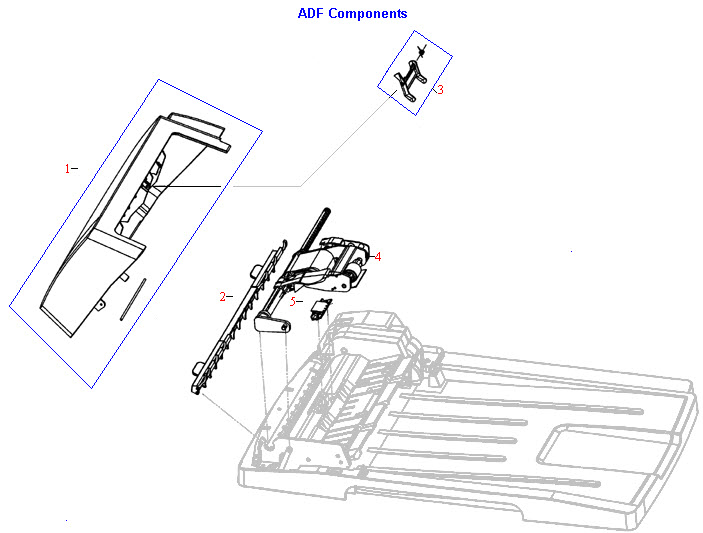

ADF components
Pic No. | Parts ID | Parts Name | Link |
1 | Q6500-67901 | ADF cover - Replacement cover for ADF mounted on flatbed scanner lid | Find 1 |
2 | C7309-40153 | Cleanout assembly strip - Green plastic bar with two grab tabs - Can be removed to help clear paper jams in the automatic document feeder assembly | Find 2 |
3 | Q3948-67902 | ADF paper sensor flag replacement kit - Includes the paper sensor flag and spring | Find 3 |
4 | 5851-3580 | Automatic document feeder (ADF) paper pick-up roller assembly | Find 4 |
4 | 5851-2559 | ADF pickup roller assembly - Includes frame that pickup rollers attach to and both pickup rollers | Find 4 |
5 | Q2665-60125 | ADF paper seperation pad assembly - Mounts in the center of the ADF separation pad frame assembly at the rear of the paper input tray | Find 5 |

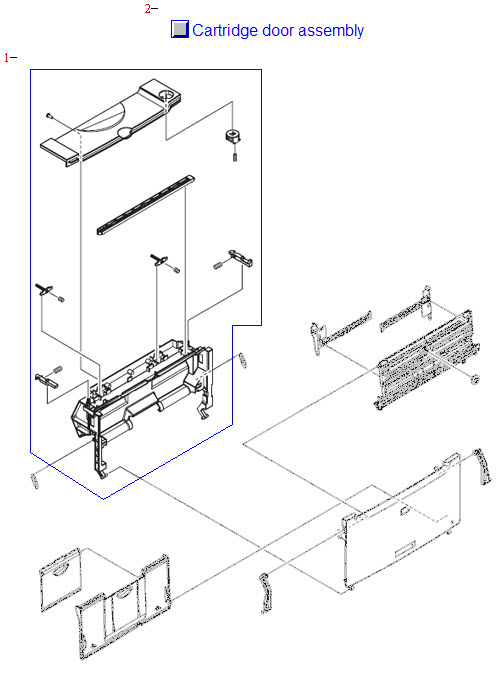

Cartridge door assembly
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-4712-000CN | Inner cover assembly - Located on the cartridge door assembly | Find 1 |
2 | RM1-4711-000CN | Cartridge door assembly - Provides access to the cartridges - Includes inner cover and tapping truss screw | Find 2 |
Duplexing assembly
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-4258-000CN | Duplexer assembly - Enables double-sided printing by flipping the page over in the printing process | Find 1 |
2 | RM1-1318-000CN | Duplexer paper size adjuster assembly - Includes the adjustment lever, holder bracket, and the two drive gears in a spring loaded arm - Mounts on the top right side of the duplexer assembly | Find 2 |

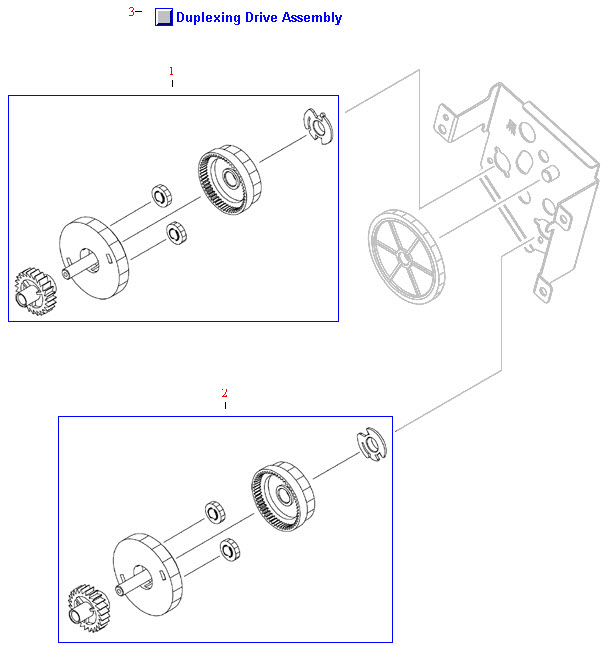

Duplexing drive assembly
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-4256-000CN | Normal rotation gear assembly - Includes the internal/external geared body, two planetary gears, outer gear with shaft, and the black ratchet gear | Find 1 |
2 | RM1-4257-000CN | Reverse rotation gear assembly - Includes the internal/external geared body, two planetary gears, outter gear with shaft, and the white ratchet gear | Find 2 |
3 | RM1-4255-000CN | Duplexing drive assembly - Includes normal rotation drive assembly and reverse rotation drive assembly | Find 3 |

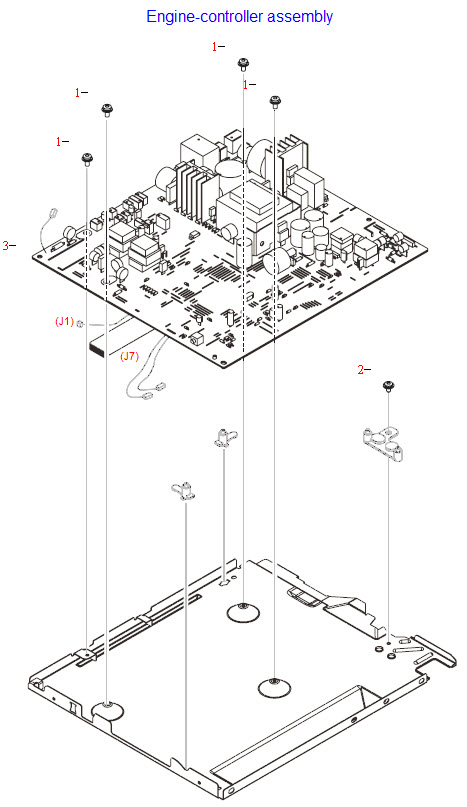

Engine controller assembly
Pic No. | Parts ID | Parts Name | Link |
1 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 1 |
2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
3 | RM1-4713-000CN | Engine controller assembly - For 110/127 VAC - Provides all power supply and motor control functions | Find 3 |
3 | RM1-4714-000CN | Engine controller assembly - For 220/240 VAC - Provides all power supply and motor control functions | Find 3 |
3 | RM1-4941-000CN | Engine controller assembly - For 220/240 VAC - Provides all power supply and motor control functions | Find 3 |
3 | RM1-4940-000CN | Engine controller assembly - For 110/127 VAC - Provides all power supply and motor control functions | Find 3 |
External covers and panels
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-4270-000CN | Rear cover assembly - Plastic cover that protects the rear part of the printer | Find 1 |
2 | RM1-4708-000CN | Right cover - Plastic cover that protects the right side on the printer - Includes stapler cover | Find 2 |
3 | RC1-3794-000CN | Caution label - Do not run staples through the engine - Has graphic of a staple with a red circle/line through it | Find 3 |
4 | RC2-2940-000CN | Top cover assembly - Plastic cover that protects the top part of the printer chassis | Find 4 |
5 | RC2-0330-000CN | Front cover - Plastic cover located at the buttom of the cartridge door assembly | Find 5 |
6 | RC1-7523-000CN | Stapler/stacker access door | Find 6 |
Formatter, fax card, HP jewel, and nameplate
Pic No. | Parts ID | Parts Name | Link |
1 | Q6445-60001 | Formatter board - Controls the logic and timing operation of the printer, translates the control panel input, and provides control of the scanner assembly - Does NOT include the LIU board | Find 1 |
2 | Q6500-60111 | LaserJet 3390/3392 LIU to Formatter board Flat Flexible Cable (FFC) | Find 2 |
3 | Q3977-60001 | Line interface unit (LIU) PC board - Telephone interface board for the printer | Find 3 |
3 | Q3977-60011 | Line interface unit (LIU) PC board - Telephone interface board for the printer | Find 3 |
3 | Q3978-60002 | Line interface unit (LIU) PC board - Telephone interface board for the printer (For use in Europe) | Find 3 |
3 | Q3978-60012 | Line interface unit (LIU) PC board - Telephone interface board for the printer (For use in Europe) | Find 3 |
4 | Q6500-40039 | Nameplate for Laserjet 3390 | Find 4 |
4 | Q6501-40001 | Nameplate for Laserjet 3392 | Find 4 |
5 | 7121-8043 | HP logo (jewel) | Find 5 |
Fuser assembly
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-2337-000CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |
1 | RM1-1461-080CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |
Internal components (1 of 4)
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-4265-000CN | Paper retainer assembly - Bracket assembly with two flapper levers - Keeps paper in the top output bin from sliding back into the printer | Find 1 |
2 | RL1-0527-000CN | Top output bin delivery roller assembly - Plastic rod with four rubber wheels (two narrow and two wide) | Find 2 |
3 | RM1-4263-000CN | Paper feed guide assembly | Find 3 |
4 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 4 |
5 | RC2-1569-000CN | DC cable guide - Attaches to the main drive assembly | Find 5 |
6 | RM1-1301-000CN | Double gear assembly - Includes the gear body, inset gear (both with a toothless area) and compression spring - For driving the paper pickup roller | Find 6 |
7 | RL1-1524-000CN | Multipurpose paper input tray separation pad | Find 7 |
8 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 8 |
9 | XB4-7300-809CN | M3 self-tapping pan head phillips screw (Black oxide finish) - 8mm long | Find 9 |
10 | RC2-0419-000CN | Multipurpose paper input tray separation pad base - Where the separation pad attaches to | Find 10 |
11 | RU5-2894-000CN | Compression spring - Located on the separation pad base of the multipurpose tray | Find 11 |
12 | RC1-3471-000CN | Drive shaft - Drives pickup roller | Find 12 |
13 | RC1-3472-000CN | Paper sensor flag - Cylindrical plastic piece with a flag on each end (One senses the paper, the other activates the photo-sensor) | Find 13 |
14 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing | Find 14 |
15 | RC1-3470-000CN | Idler roller (plastic) - Free wheeling roller - Two used | Find 15 |
16 | RL1-0540-000CN | Paper pickup roller - Includes the D shaped pickup roller spindle with the rubber tire - Does NOT include the idler rollers on each side of the pickup roller | Find 16 |
17 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing | Find 17 |
18 | RU5-2323-000CN | Compression spring | Find 18 |
19 | RU5-0331-000CN | 29-tooth gear (White plastic) - Main drive gear for the fusing assembly - Mounts on the right end of the fusing assembly | Find 19 |
20 | RU5-0332-000CN | 19-tooth gear (White plastic) | Find 20 |
21 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 21 |
22 | RC1-3665-000CN | Shaft bushing/retainer - Small plastic cylinder with four nubs that twist - Locks into the side frame | Find 22 |
23 | RM1-4943-000CN | Speaker assembly - Located on the left lower side of the printer | Find 23 |

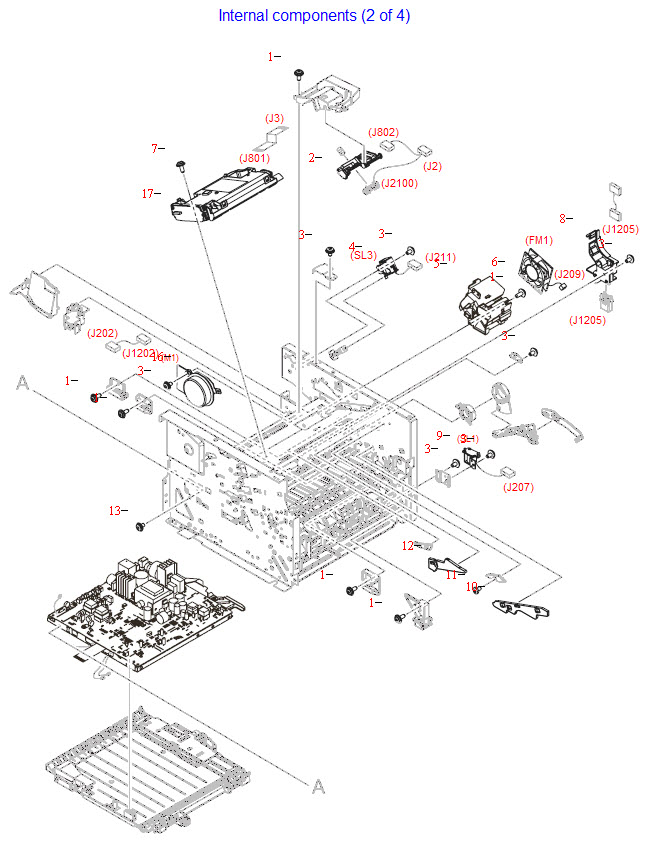

Internal components (2 of 4)
Pic No. | Parts ID | Parts Name | Link |
1 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 1 |
2 | RC2-0392-000CN | Arm tag | Find 2 |
3 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 3 |
4 | RK2-0911-000CN | Duplexer solenoid - Solenoid SL3 | Find 4 |
5 | RC2-2946-000CN | Fan holder - Holds the cooling fan (FM1) | Find 5 |
6 | RK2-2082-000CN | Cooling fan - Fan (FM1) - Located on upper left rear side of the printer | Find 6 |
7 | XA9-1648-000CN | Screw - TP M3 x 8mm - Used to secure anything to plastic | Find 7 |
8 | RC2-0396-000CN | Drawer connector holder | Find 8 |
9 | RK2-0424-000CN | 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 2 (250-sheet tray) - Mounts on the right side plate assembly | Find 9 |
10 | RC2-0346-000CN | Right lower cartridge guide | Find 10 |
11 | XA9-1561-000CN | Screw - RS M3 x 6mm - Used to secure metal to metal | Find 11 |
12 | RC2-0426-000CN | Right upper cartridge guide | Find 12 |
13 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 13 |
16 | RK2-1567-000CN | DC Motor - Provides power for drive assembly - Located on the right side of printer - Motor (M1) | Find 16 |
17 | RM1-4262-000CN | Laser/Scanner assembly - Mounts on top of print structure | Find 17 |

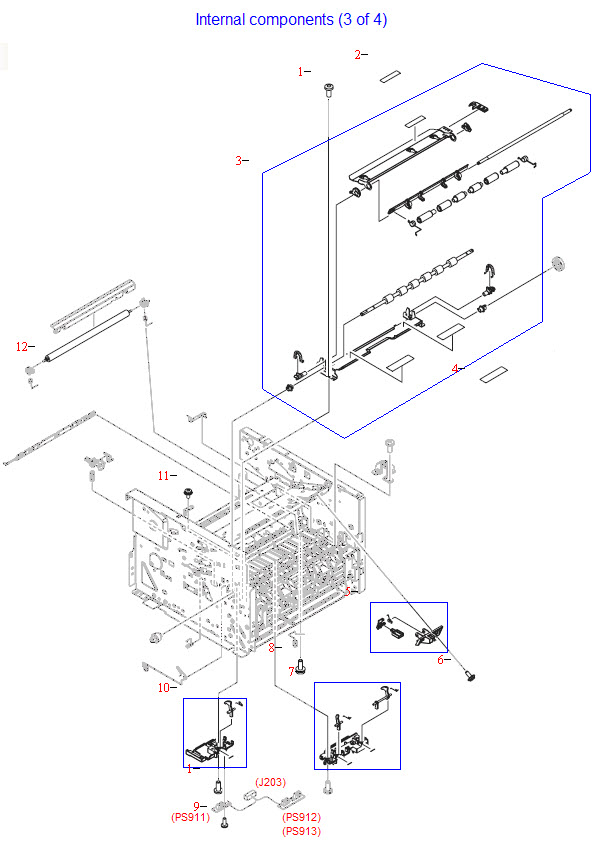

Internal components (3 of 4)
Pic No. | Parts ID | Parts Name | Link |
1 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 1 |
2 | RC1-3796-000CN | Transfer Guide Open label - Located on registration roller assembly | Find 2 |
3 | RM1-4244-000CN | Registration assembly - Set of rollers before toner cartridge and after feed rollers | Find 3 |
4 | RC2-2952-000CN | Clear jam label | Find 4 |
5 | RM1-1321-000CN | Shutter link assembly - Spring loaded link which engages the shutter on the laser/scanner assembly (blocking the laser beam) when the toner cartridge access door is opened - Mounts on the left front of the laser/scanner support shelf | Find 5 |
6 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 6 |
7 | RM1-1283-000CN | Top sensor assembly - Includes the bracket and flags for the top of page detection sensor (PS912), and paper width detection sensor (PS913) - Mounts behind the registration roller assembly | Find 7 |
8 | XA9-1422-000CN | M4 X 12mm machine screw with washer | Find 8 |
9 | XB4-7300-809CN | M3 self-tapping pan head phillips screw (Black oxide finish) - 8mm long | Find 9 |
10 | RM1-4245-000CN | Paper width sensor assembly | Find 10 |
11 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 11 |
12 | RM1-4279-000CN | Transfer roller - Transfer charge roller | Find 12 |

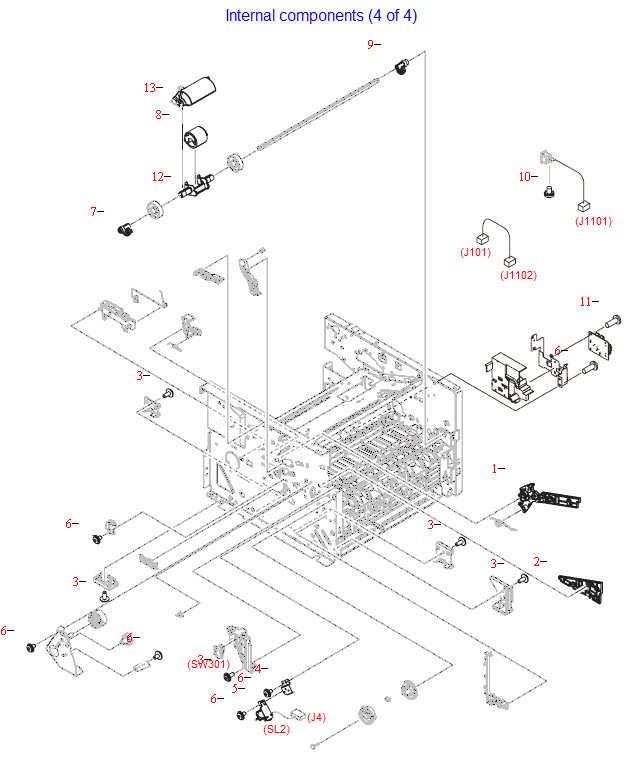

Internal components (4 of 4)
Pic No. | Parts ID | Parts Name | Link |
1 | RC2-0425-000CN | Left upper cartridge guide | Find 1 |
2 | RC2-0339-000CN | Left lower cartridge guide | Find 2 |
3 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 3 |
4 | RC2-0334-000CN | Solenoid holder | mount | For solenoid SL2 | Used on multipurpose tray | Find 4 |
5 | RK2-1587-000CN | Multipurpose paper input tray solenoid (SL2) | Find 5 |
6 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |
7 | RC2-0387-000CN | Multipurpose paper input tray left side cam - Small plastic cam that moves inside the paper pick-up roller holder | Find 7 |
8 | RL1-1525-000CN | Multipurpose paper input tray pick-up roller | Find 8 |
9 | RC2-0388-000CN | Multipurpose paper input tray right side cam - Small plastic cam that moves inside the paper pick-up roller holder | Find 9 |
10 | XB2-7400-606CN | Screw toothed washer - M4 x 6mm - Used to secure metal components to metal components | Find 10 |
11 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 11 |
12 | RC2-0386-000CN | Paper pick-up roller holder | Find 12 |
13 | RC2-0420-000CN | Multipurpose paper input tray pick-up roller cover - Plastic cover that protects the paper pick-up roller | Find 13 |

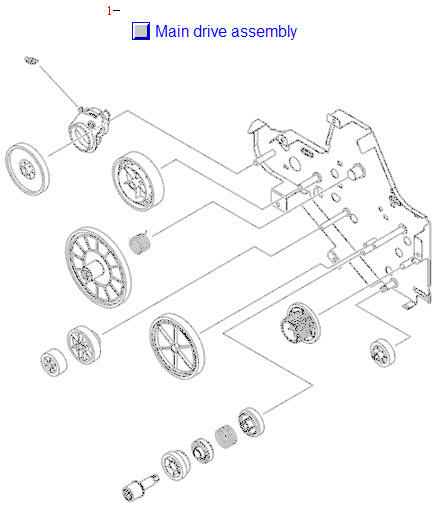

Main drive assembly
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-4253-000CN | Main drive assembly | Find 1 |
Scanner and ADF assemblies
Pic No. | Parts ID | Parts Name | Link |
1 | Q3948-67905 | ADF assembly hinge kit - Includes the left and right hinges and mounting screws | Find 1 |
2 | Q6500-67903 | LaserJet 3390/3392 Automatic Document Feeder assembly - Does not include ADF paper input tray. | Find 2 |
3 | Q6500-60119 | ADF paper input tray - Holds the paper before is printed - Includes the adjustable width guides | Find 3 |
4 | Q6500-67902 | Flatbed scanner assembly for LaserJet 3390/3392 all-in-one - Includes flatbed scanner frame and glass | Find 4 |

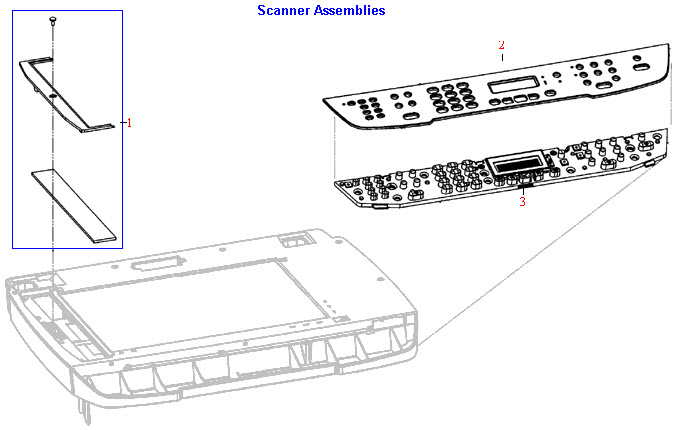

Scanner assemblies
Pic No. | Parts ID | Parts Name | Link |
1 | Q6500-67904 | Replacement glass kit - Replacement flatbed scanner glass kit - Includes glass, frame mounts and screw | Find 1 |
2 | Q6500-40022 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Turkish) | Find 2 |
2 | Q6500-40009 | LaserJet 3390/3392 control panel bezel - Control panel overlay (German) | Find 2 |
2 | Q6500-40024 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Hebrew) | Find 2 |
2 | Q6500-40017 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Russian) | Find 2 |
2 | Q6500-40020 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Polish) | Find 2 |
2 | Q6500-40040 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Dutch) | Find 2 |
2 | Q6500-40025 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Arabic) | Find 2 |
2 | Q6500-40018 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Czechoslovakian) | Find 2 |
2 | Q6500-40006 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Swedish) | Find 2 |
2 | Q6500-40016 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Danish) | Find 2 |
2 | Q6500-40028 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Simplified Chinese) | Find 2 |
2 | Q6500-40012 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Italian) | Find 2 |
2 | Q6500-40021 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Slovak) | Find 2 |
2 | Q6500-40019 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Hungarian) | Find 2 |
2 | Q6500-40011 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Dutch) | Find 2 |
2 | Q6500-40030 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Vietnamese) | Find 2 |
2 | Q6500-40014 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Norwegian) | Find 2 |
2 | Q6500-40013 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Swedish) | Find 2 |
2 | Q6500-40026 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Traditional Chinese) | Find 2 |
2 | Q6500-40010 | LaserJet 3390/3392 control panel bezel - Control panel overlay (French) | Find 2 |
2 | Q6500-40023 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Greek) | Find 2 |
2 | Q6500-40027 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Korean) | Find 2 |
2 | Q6500-40015 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Finnish) | Find 2 |
2 | Q6500-40029 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Taiwanese) | Find 2 |
3 | Q6500-60104 | LaserJet 3390/3392 control panel assembly -Includes the display and control function buttons - Does NOT include the language specific overlay | Find 3 |

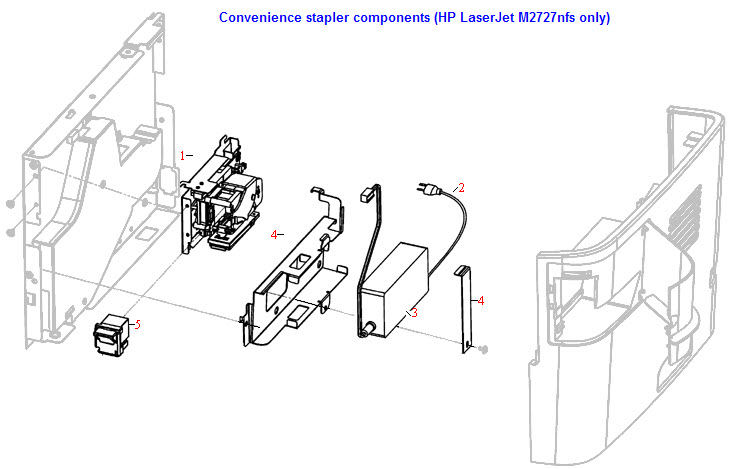

Stapler components
Pic No. | Parts ID | Parts Name | Link |
1 | Q7429-67101 | LaserJet 3392AIO convenience stapler mechanism - Located on upper right corner of printer | Find 1 |
2 | Q6501-60101 | Convenience stapler AC input power cord - Connects the stapler unit to the stapler power supply | Find 2 |
3 | Q7429-60501 | Convenience stapler power supply | Find 3 |
4 | Q6500-00006 | LaserJet 3392AIO convenience stapler power supply metal mounting frame and holder strap | Find 4 |
5 | Q7432-67001 | Convenience stapler cartridge pack - 1,500-staple capacity each - Contains two staple cartridges | Find 5 |
Tray 2 cassette and tray 3 cassette/feeder
Pic No. | Parts ID | Parts Name | Link |
1 | RM1-1292-080CN | 250-sheet input paper tray (tray 2) assembly - Includes the tray body and front cover assemblies | Find 1 |
2 | Q7556-67901 | Optional 250 sheet paper tray assembly - Includes base assembly and removable paper cassette - Adds an additional bottom paper tray (Tray3 or 4)to the LaserJet | Find 2 |
